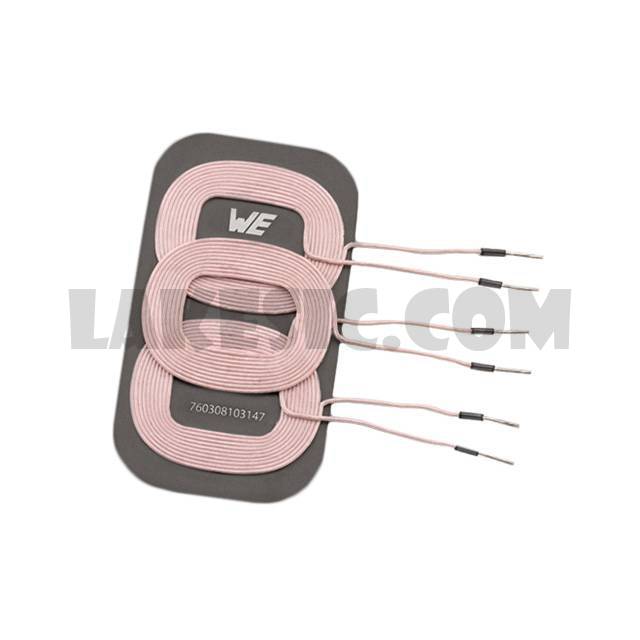

760308103147


760308103147

Part Number760308103147

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103147 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package6
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver, Transmitter
Type3 Coil, 1 Layer
Inductance8.5µH, 7.5µH, 8.5µH
Tolerance±10%
DC Resistance (DCR)56mOhm Max
Q @ Freq145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz
Current Rating (Amps)9A, 10A, 9A
Current - Saturation18A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm)
