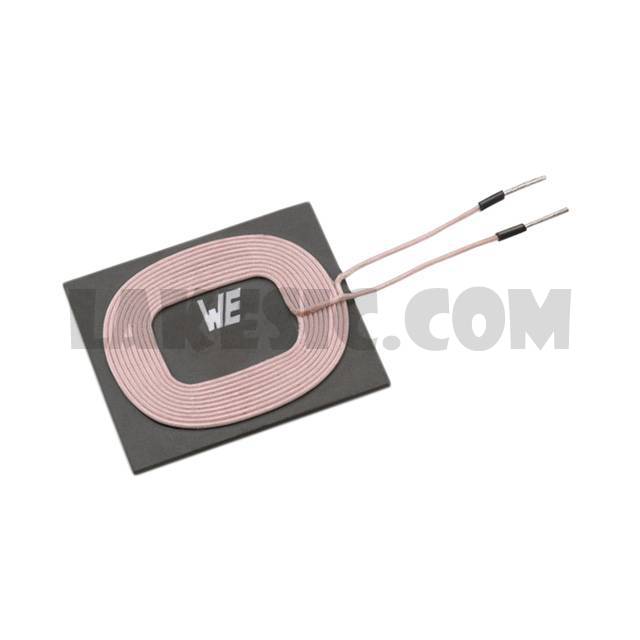

760308103146


760308103146

Part Number760308103146

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103146 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package14
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance8.5µH
Tolerance±10%
DC Resistance (DCR)56mOhm Max
Q @ Freq140 @ 125kHz
Current Rating (Amps)8A
Current - Saturation16A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 60°C
Size / Dimension2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)
