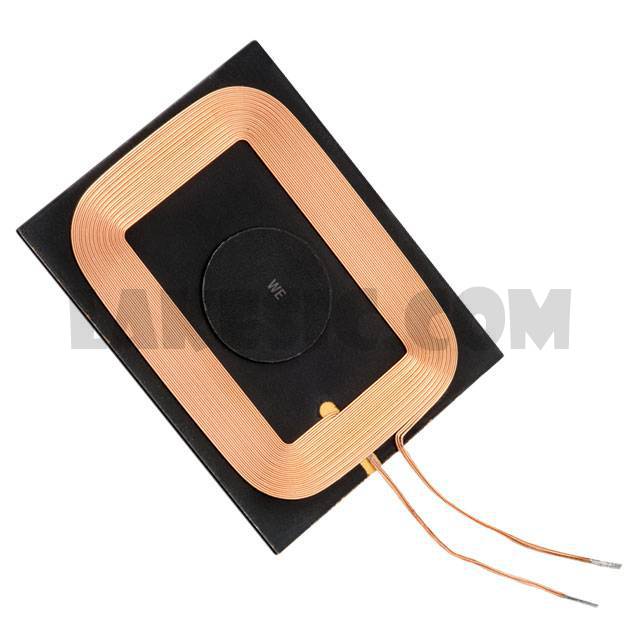

760308103211


760308103211

Part Number760308103211

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103211 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package32
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance7.3µH
Tolerance±10%
DC Resistance (DCR)200mOhm Max
Q @ Freq28 @ 125kHz
Current Rating (Amps)2.5A
Current - Saturation5A
Frequency - Self Resonant12.7MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm)
