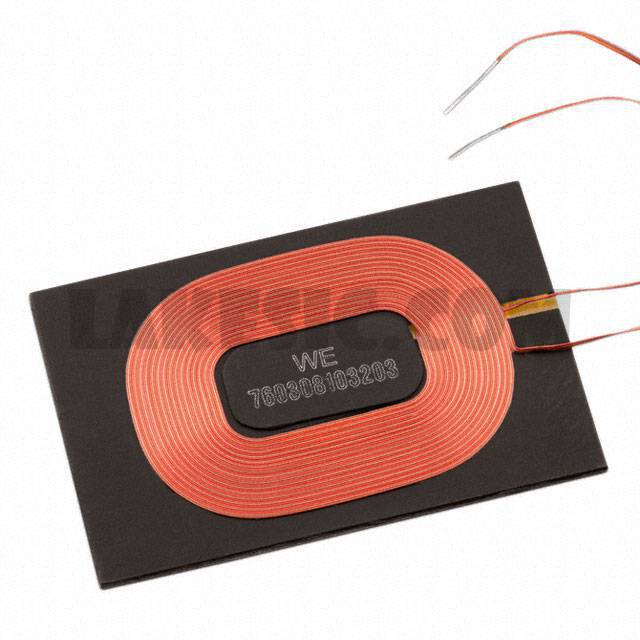

760308103203


760308103203

Part Number760308103203

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103203 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package48
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance12µH
Tolerance±10%
DC Resistance (DCR)550mOhm
Q @ Freq21 @ 125kHz
Current Rating (Amps)1.55A
Current - Saturation3A
Frequency - Self Resonant20MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)
