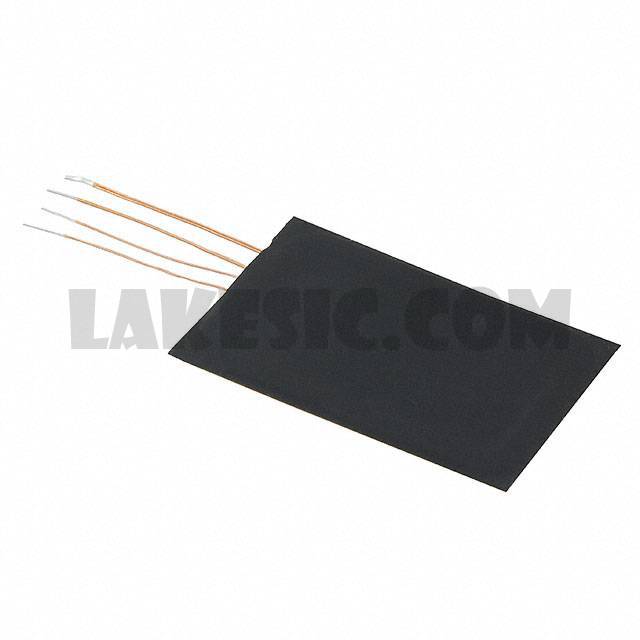

760308103307


760308103307

Part Number760308103307

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103307 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package10
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type2 Coil, 1 Layer
Inductance7.8µH, 1.6µH
Tolerance±10%
DC Resistance (DCR)340mOhm Max, 90mOhm Max
Q @ Freq19 @ 125kHz, 47 @ 125kHz
Current Rating (Amps)1.5A, 4A
Current - Saturation3A, 7A
Frequency - Self Resonant22MHz, 24MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm)
