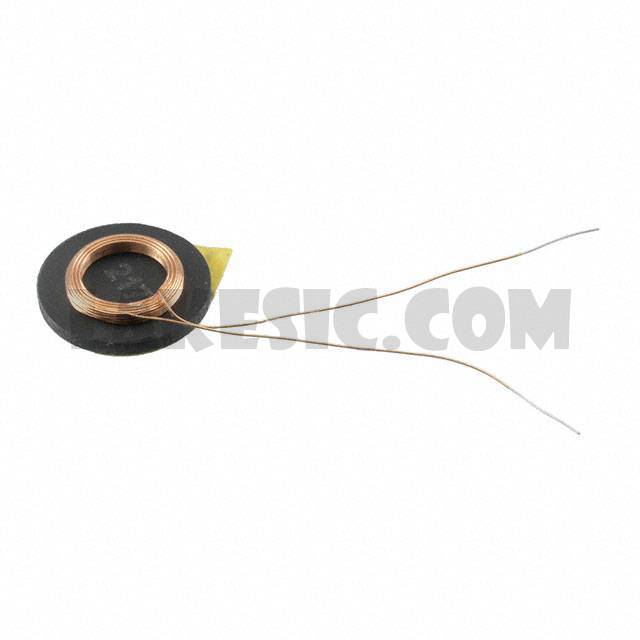

760308101217


760308101217

Part Number760308101217

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101217 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package180
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance24.2µH
Tolerance±10%
DC Resistance (DCR)1.4Ohm Max
Q @ Freq13 @ 125kHz
Current Rating (Amps)400mA
Current - Saturation1A
Frequency - Self Resonant14.5MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.41" Dia x 0.07" H (10.3mm x 1.9mm)
