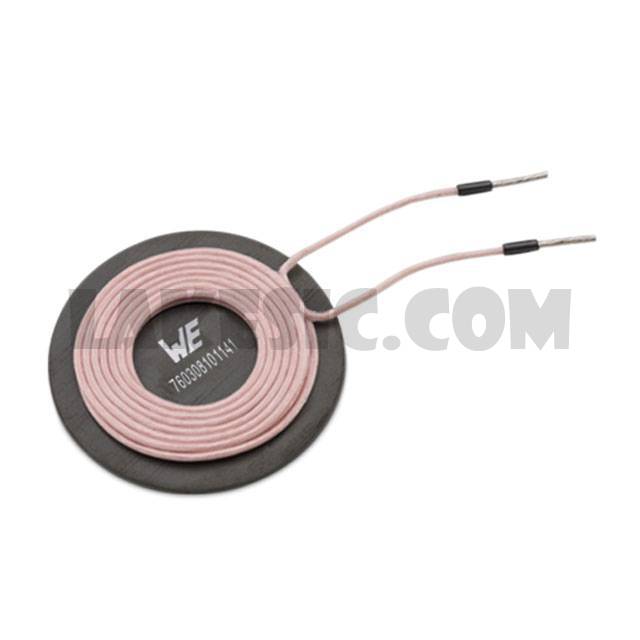

760308100141


760308100141

Part Number760308100141

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308100141 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package20
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance10µH
Tolerance±10%
DC Resistance (DCR)30mOhm Max
Q @ Freq180 @ 125kHz
Current Rating (Amps)9A
Current - Saturation16A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)

760308100141 - Related Products

More >>
760308100143 Wurth Electronics Inc., 1 Coil, 1 Layer 6µH Wireless Charging Coil Transmitter 18mOhm Max, WE-WPCC View
760308104120 Wurth Electronics Inc., 3 Coil, 1 Layer 6.9µH, 6.4µH, 6.9µH Wireless Charging Coil Transmitter 45mOhm, WE-WPCC View
760308101105 Wurth Electronics Inc., 1 Coil, 1 Layer 3.3µH Wireless Charging Coil Transmitter 80mOhm Max, WE-WPCC View
760308102308 Wurth Electronics Inc., 1 Coil, 1 Layer 3µH Wireless Charging Coil Transmitter 35mOhm Max, WE-WPCC View
760308101208 Wurth Electronics Inc., 1 Coil, 1 Layer 13µH Wireless Charging Coil Receiver 400mOhm, WE-WPCC View
760308103215 Wurth Electronics Inc., 1 Coil, 1 Layer 14.3µH Wireless Charging Coil Receiver 190mOhm Max, WE-WPCC View
760308103203 Wurth Electronics Inc., 1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 550mOhm, WE-WPCC View
760308101221 Wurth Electronics Inc., 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver 1.15Ohm Max, WE-WPCC View
760308102142 Wurth Electronics Inc., 1 Coil, 1 Layer 5.8µH Wireless Charging Coil Transmitter 12mOhm Max, WE-WPCC View
760308103148 Wurth Electronics Inc., 2 Coil, 1 Layer 6.9µH, 6.4µH Wireless Charging Coil Receiver, Transmitter 52mOhm Max, WE-WPCC View
760308102144 Wurth Electronics Inc., 1 Coil, 2 Layer 19.5µH Wireless Charging Coil Transmitter 45mOhm Max, WE-WPCC View
760308103305 Wurth Electronics Inc., 2 Coil, 1 Layer 8.8µH, 1.4µH Wireless Charging Coil Receiver 220mOhm Max, 100mOhm Max, WE-WPCC View
