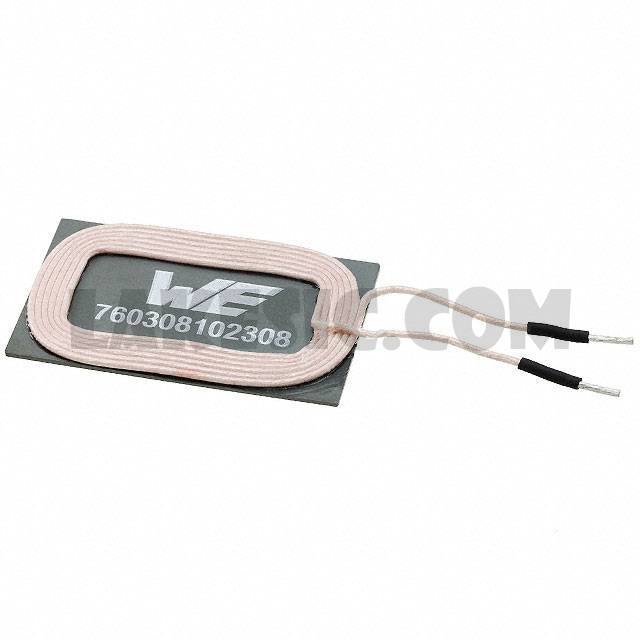

760308102308


760308102308

Part Number760308102308

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308102308 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package48
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance3µH
Tolerance±10%
DC Resistance (DCR)35mOhm Max
Q @ Freq60 @ 125kHz
Current Rating (Amps)8.5A
Current - Saturation15A
Frequency - Self Resonant27MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm)
