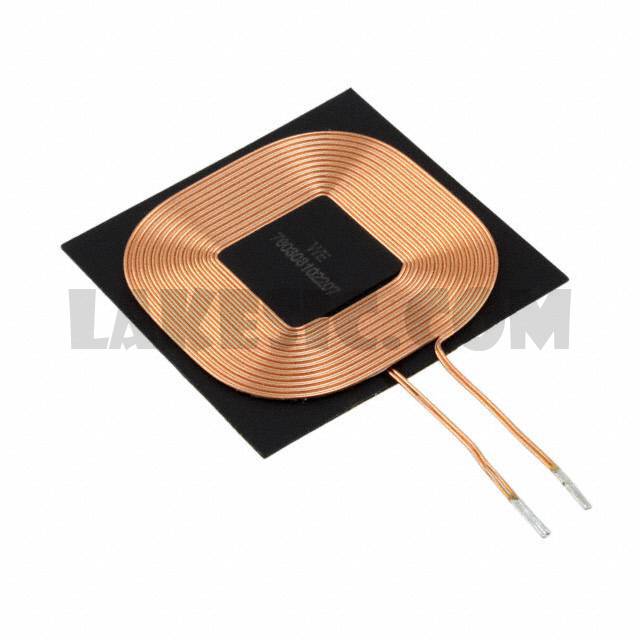

760308102207


760308102207

Part Number760308102207

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308102207 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package56
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance8µH
Tolerance±10%
DC Resistance (DCR)60mOhm
Q @ Freq30 @ 125kHz
Current Rating (Amps)5A
Current - Saturation10A
Frequency - Self Resonant16MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm)
