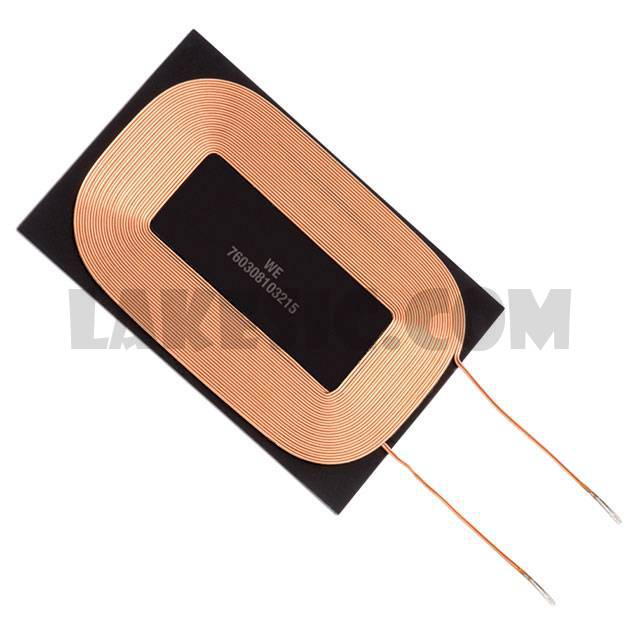

760308103215


760308103215

Part Number760308103215

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103215 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package48
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance14.3µH
Tolerance±10%
DC Resistance (DCR)190mOhm Max
Q @ Freq40 @ 125kHz
Current Rating (Amps)3A
Current - Saturation8A
Frequency - Self Resonant8.8MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.89" L x 1.26" W x 0.04" H (48.0mm x 32mm x 1mm)
