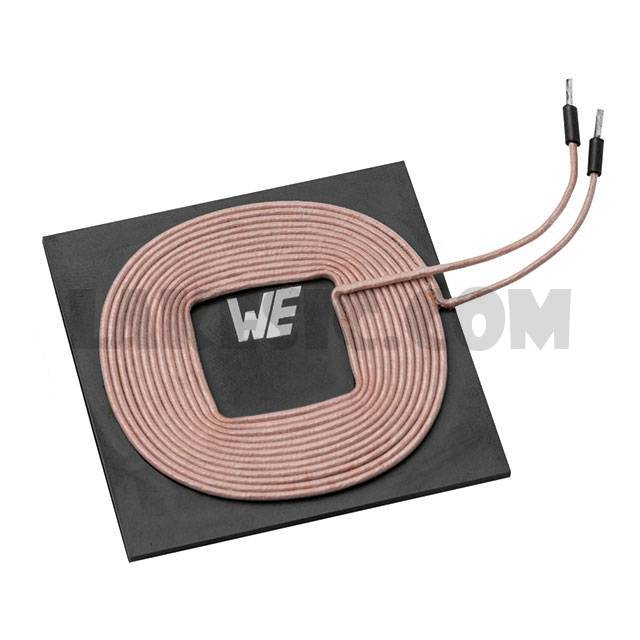

760308103102


760308103102

Part Number760308103102

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308103102 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package14
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance10µH
Tolerance±10%
DC Resistance (DCR)55mOhm Max
Q @ Freq130 @ 125kHz
Current Rating (Amps)7A
Current - Saturation10A
Frequency - Self Resonant11MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm)
