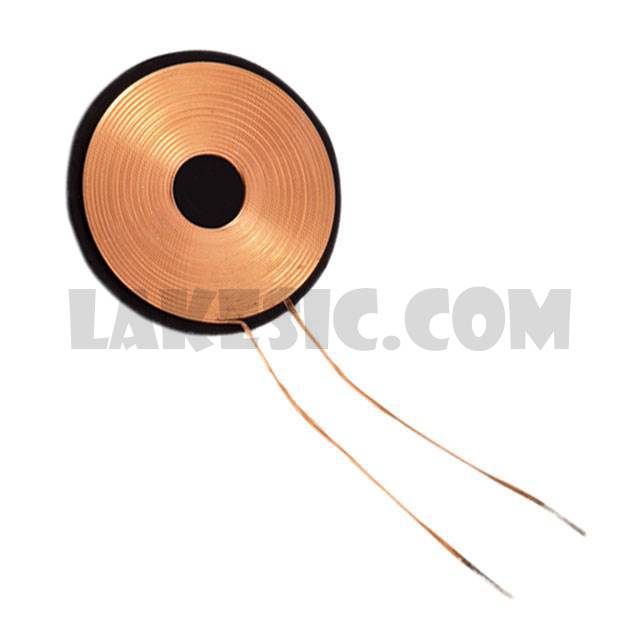

760308101219


760308101219

Part Number760308101219

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308101219 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package128
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance11.8µH
Tolerance±10%
DC Resistance (DCR)750mOhm Max
Q @ Freq13 @ 125kHz
Current Rating (Amps)700mA
Current - Saturation1.5A
Frequency - Self Resonant22MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension0.59" Dia x 0.02" H (15.0mm x 0.6mm)
