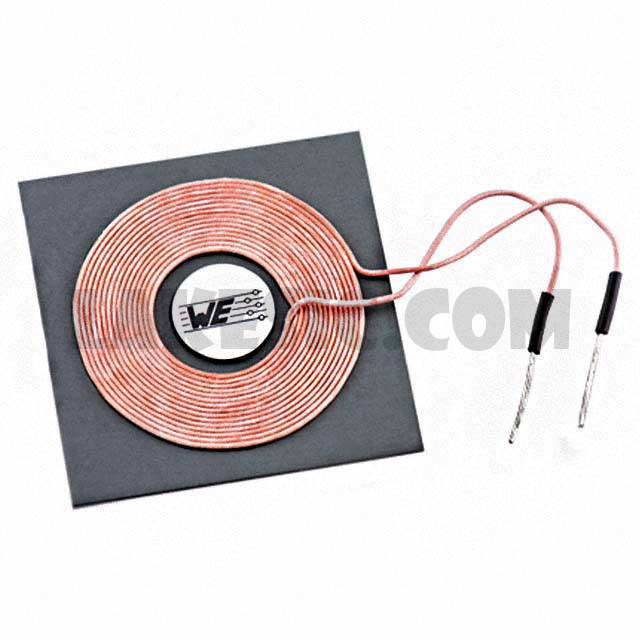

760308201


760308201

Part Number760308201

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

760308201 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package22
ManufacturerWurth Electronics Inc.
SeriesWE-WPCC
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance10µH
Tolerance±5%
DC Resistance (DCR)200mOhm Max
Q @ Freq50 @ 125kHz
Current Rating (Amps)3.5A
Current - Saturation8A
Frequency - Self Resonant15MHz
Operating Temperature-20°C ~ 105°C
Size / Dimension1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)
