8114-RC
8114-RC

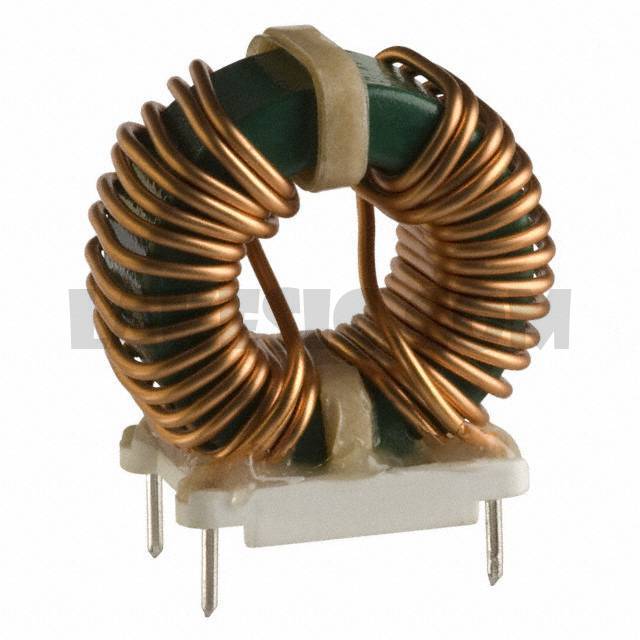

Part Number 8114-RC Description CMC 2.5MH 12.5A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 12.5A DCR 11mOhm
To learn about the specification of 8114-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 8114-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 8114-RC.
We are offering 8114-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
8114-RC - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 8100 Series Standard Package 270 Manufacturer Bourns Inc. Series 8100 Packaging Bulk Part Status Active Filter Type - Number of Lines 2 Inductance @ Frequency 2.5mH @ 1kHz Current Rating (Max) 12.5A DC Resistance (DCR) (Max) 11mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -55°C ~ 105°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.450" L x 0.800" W (36.83mm x 20.32mm) Height (Max) 1.500" (38.10mm) Package / Case Vertical, 4 PC Pin Base Part Number 8100
8106-RC Bourns Inc., 5mH @ 1kHz 2 Line Common Mode Choke Through Hole 3.7A DCR 70mOhm, 8100
View
8104-RC Bourns Inc., 10mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.4A DCR 170mOhm, 8100
View
8101-RC Bourns Inc., 4mH @ 1kHz 2 Line Common Mode Choke Through Hole 1.7A DCR 173mOhm, 8100
View
8111-RC Bourns Inc., 12mH @ 1kHz 2 Line Common Mode Choke Through Hole 4A DCR 110mOhm, 8100
View
8102-RC Bourns Inc., 2.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.4A DCR 90mOhm, 8100
View
8120-RC Bourns Inc., 2.4mH @ 1kHz 2 Line Common Mode Choke Through Hole 17A DCR 8mOhm, 8100
View
8121-RC Bourns Inc., 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 20A DCR 7mOhm, 8100
View
8112-RC Bourns Inc., 8mH @ 1kHz 2 Line Common Mode Choke Through Hole 5.6A DCR 55mOhm, 8100
View
8103-RC Bourns Inc., 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 4.8A DCR 22mOhm, 8100
View
8113-RC Bourns Inc., 5mH @ 1kHz 2 Line Common Mode Choke Through Hole 8.9A DCR 22mOhm, 8100
View
8115-RC Bourns Inc., 1.2mH @ 1kHz 2 Line Common Mode Choke Through Hole 16A DCR 6mOhm, 8100
View
8108-RC Bourns Inc., 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 10A DCR 10mOhm, 8100
View
