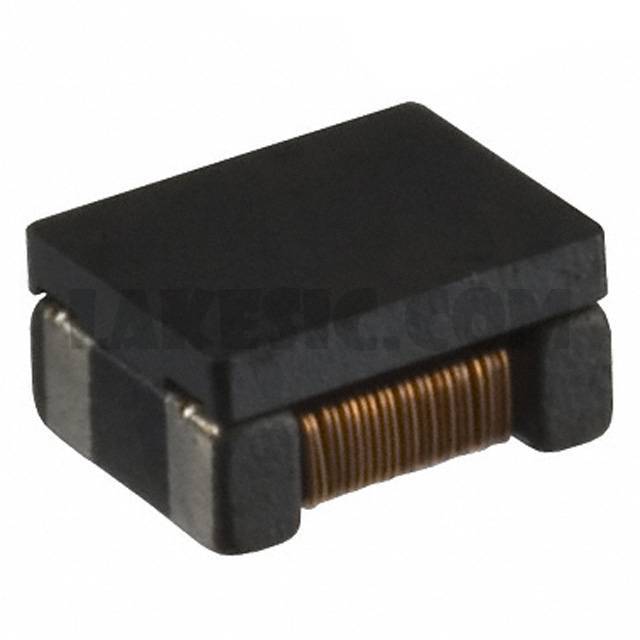

ACM2520-102-2P-T002
ACM2520-102-2P-T002
Part Number ACM2520-102-2P-T002 Description CMC 200MA 2LN 1 KOHM SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 1 kOhms @ 100MHz 200mA DCR 900mOhm
To learn about the specification of ACM2520-102-2P-T002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM2520-102-2P-T002 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM2520-102-2P-T002.
We are offering ACM2520-102-2P-T002 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ACM2520-102-2P-T002 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet ACM2520 Series, Commercial Standard Package 2000 Manufacturer TDK Corporation Series ACM Packaging Tape & Reel (TR) Part Status Active Filter Type Signal Line Number of Lines 2 Impedance @ Frequency 1 kOhms @ 100MHz Current Rating (Max) 200mA DC Resistance (DCR) (Max) 900mOhm Voltage Rating - DC 20V Voltage Rating - AC - Operating Temperature -40°C ~ 85°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm) Height (Max) 0.051" (1.30mm) Package / Case Horizontal, 4 PC Pad
