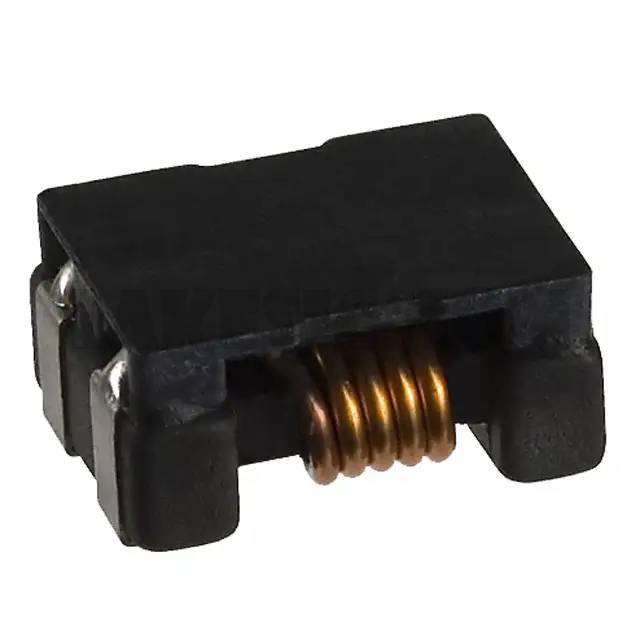

ACM7060-701-2PL-TL01
ACM7060-701-2PL-TL01
Part Number ACM7060-701-2PL-TL01 Description CMC 4A 2LN 700 OHM SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 4A DCR 15mOhm
To learn about the specification of ACM7060-701-2PL-TL01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM7060-701-2PL-TL01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM7060-701-2PL-TL01.
We are offering ACM7060-701-2PL-TL01 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ACM7060-701-2PL-TL01 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet ACM7060 Series, Commercial Standard Package 1500 Manufacturer TDK Corporation Series ACM Packaging Tape & Reel (TR) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 700 Ohms @ 100MHz Current Rating (Max) 4A DC Resistance (DCR) (Max) 15mOhm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 85°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.276" L x 0.236" W (7.00mm x 6.00mm) Height (Max) 0.138" (3.50mm) Package / Case Horizontal, 4 PC Pad
