Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	AFGHL40T65SPD
Standard Package	450
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	80A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 40A
Power - Max	267W
Switching Energy	1.16MJ (on), 270µJ (off)
Input Type	Standard
Gate Charge	36nC
Td (on/off) @ 25°C	18ns/35ns
Test Condition	400V, 40A, 6Ohm, 15V
Reverse Recovery Time (trr)	35ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

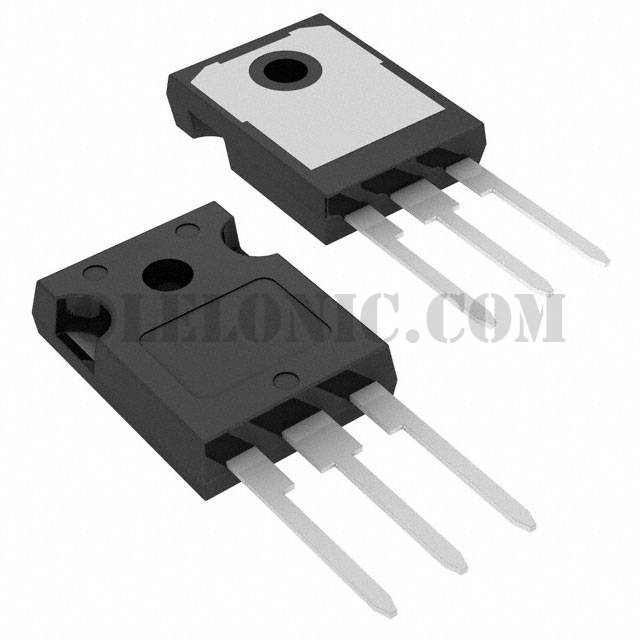

Package / Case	TO-247-3
Supplier Device Package	TO-247-3
