AO3419

AO3419

Part NumberAO3419

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET P-CH 20V 3.5A SOT23

DatasheetAO3419

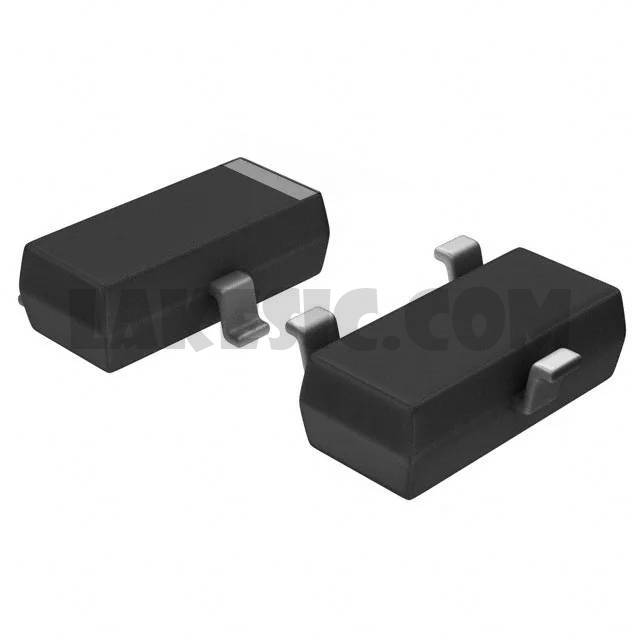

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.5A (Ta) 1.4W (Ta) Surface Mount SOT-23-3L

To learn about the specification of AO3419, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO3419 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO3419.
We are offering AO3419 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO3419 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AO3419
Standard Package	3000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 10V
Rds On (Max) @ Id, Vgs	85mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.4nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	400pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3L
Package / Case	TO-236-3, SC-59, SOT-23-3
