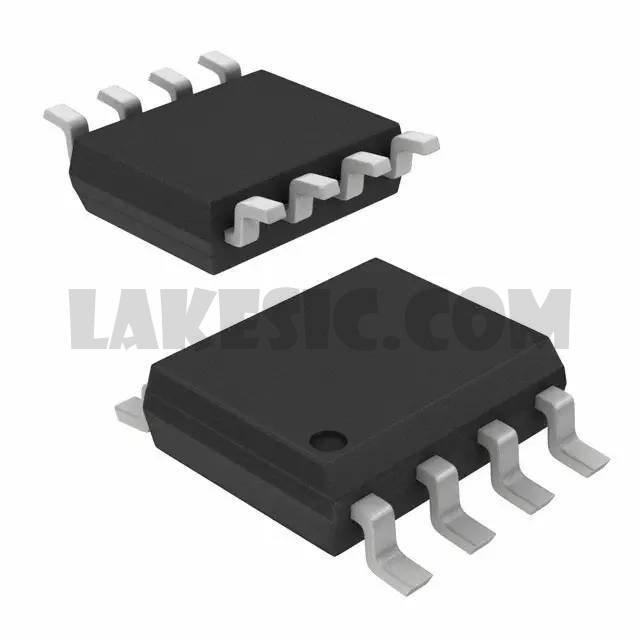

AO4800B

AO4800B

Part NumberAO4800B

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET 2N-CH 30V 6.9A 8-SOIC

DatasheetAO4800B

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 6.9A 2W Surface Mount 8-SO

To learn about the specification of AO4800B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AO4800B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AO4800B.
We are offering AO4800B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AO4800B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AO4800B
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	6.9A
Rds On (Max) @ Id, Vgs	27mOhm @ 6.9A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	630pF @ 15V
Power - Max	2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO
