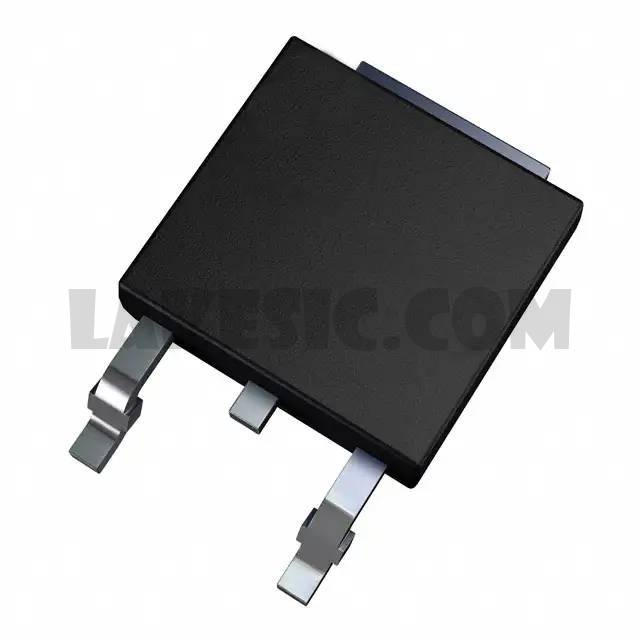

Part NumberAOD5B60D

Manufacturer

Description

Datasheet

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AOD5B60D - Product Attributes

Categories Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet
Standard Package2500
ManufacturerAlpha & Omega Semiconductor Inc.
SeriesAlpha IGBT™
PackagingTape & Reel (TR)
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)23A
Current - Collector Pulsed (Icm)20A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 5A
Power - Max54.4W
Switching Energy140µJ (on), 40µJ (off)
Input TypeStandard
Gate Charge9.4nC
Td (on/off) @ 25°C12ns/82ns
Test Condition400V, 5A, 60Ohm, 15V
Reverse Recovery Time (trr)98ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageTO-252, (D-Pak)
