AOI950A70

AOI950A70

Part NumberAOI950A70

ManufacturerAlpha & Omega Semiconductor Inc.

Description700V, A MOSTM N-CHANNEL POWER TR

DatasheetAOD950A70, AOI950A70

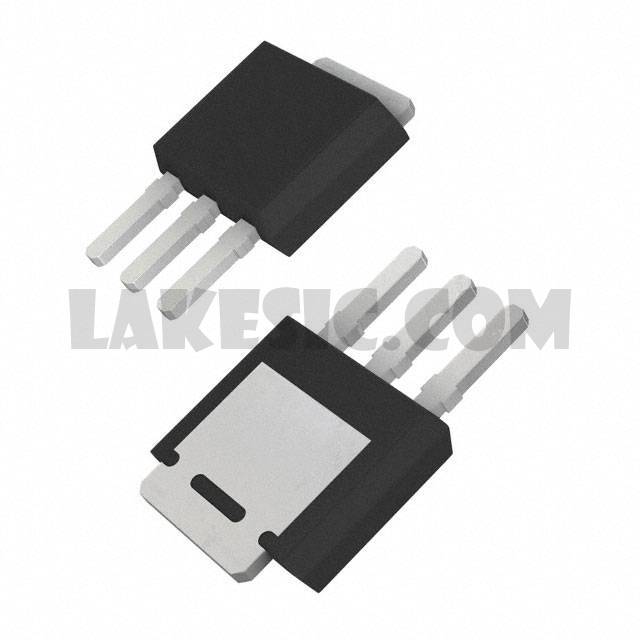

Package / CaseTO-251-3 Stub Leads, IPak

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 5A (Tc) 56.5W (Tc) Through Hole TO-251A

To learn about the specification of AOI950A70, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOI950A70 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOI950A70.
We are offering AOI950A70 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AOI950A70 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AOD950A70, AOI950A70
Standard Package	70
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	aMOS5™
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	950mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	4.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	461pF @ 100V
FET Feature	-
Power Dissipation (Max)	56.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251A
Package / Case	TO-251-3 Stub Leads, IPak
