AON3611

AON3611

Part NumberAON3611

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N/P-CH 30V 5A/6A 8DFN

DatasheetAON3611

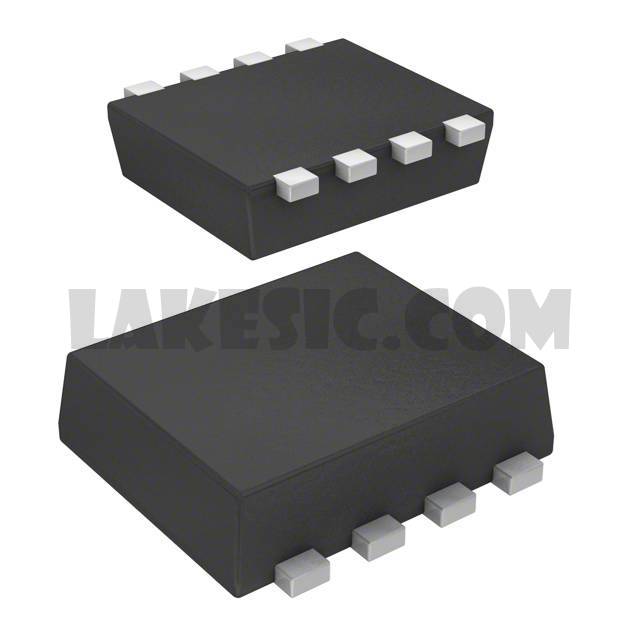

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 30V 5A, 6A 2.1W, 2.5W Surface Mount 8-DFN (2.9x2.3)

To learn about the specification of AON3611, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON3611 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON3611.
We are offering AON3611 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON3611 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AON3611
Standard Package	3000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel, Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A, 6A
Rds On (Max) @ Id, Vgs	50mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 15V
Power - Max	2.1W, 2.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	8-DFN (2.9x2.3)
