AON7254

AON7254

Part NumberAON7254

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N-CH 150V 17A 8DFN

DatasheetAON7254

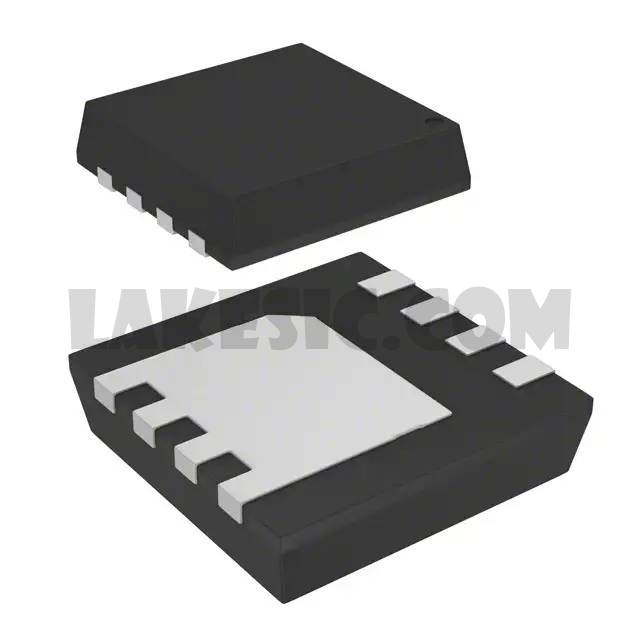

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 5.5A (Ta), 17A (Tc) 4.1W (Ta), 39W (Tc) Surface Mount 8-DFN-EP (3.3x3.3)

To learn about the specification of AON7254, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON7254 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON7254.
We are offering AON7254 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON7254 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AON7254
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	AlphaMOS
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	5.5A (Ta), 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	54mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	675pF @ 75V
FET Feature	-
Power Dissipation (Max)	4.1W (Ta), 39W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
