AON7611

AON7611

Part NumberAON7611

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET N/P-CH 30V 9A/18.5A 8DFN

DatasheetAON7611

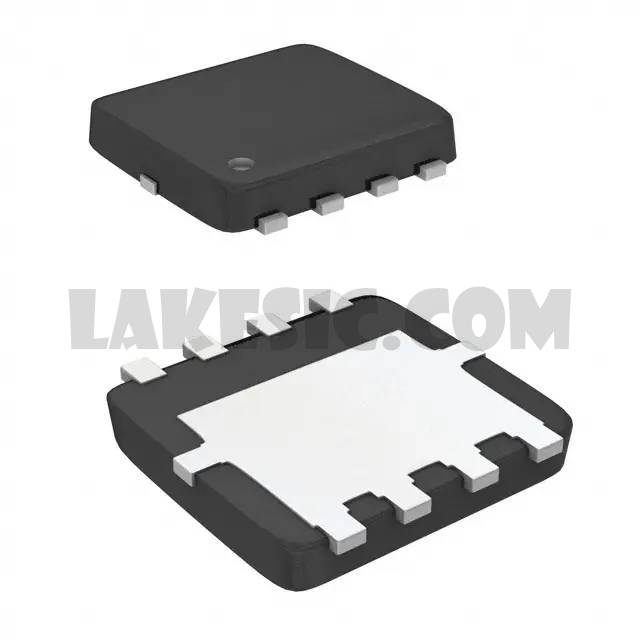

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 30V 9A, 18.5A 1.5W Surface Mount 8-DFN (3x3)

To learn about the specification of AON7611, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON7611 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON7611.
We are offering AON7611 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON7611 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AON7611
Standard Package	5000
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel, Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9A, 18.5A
Rds On (Max) @ Id, Vgs	50mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 15V
Power - Max	1.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	8-DFN (3x3)
