AON7804

AON7804

Part NumberAON7804

ManufacturerAlpha & Omega Semiconductor Inc.

DescriptionMOSFET 2N-CH 30V 9A 8DFN

DatasheetAON7804

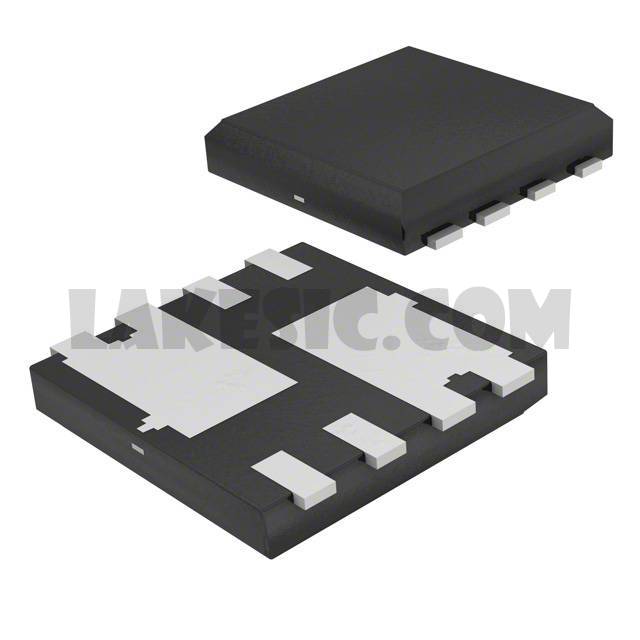

Package / Case8-PowerSMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 9A 3.1W Surface Mount 8-DFN-EP (3x3)

To learn about the specification of AON7804, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AON7804 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AON7804.
We are offering AON7804 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AON7804 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	AON7804
Standard Package	1
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9A
Rds On (Max) @ Id, Vgs	21mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	888pF @ 15V
Power - Max	3.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerSMD, Flat Leads
Supplier Device Package	8-DFN-EP (3x3)
