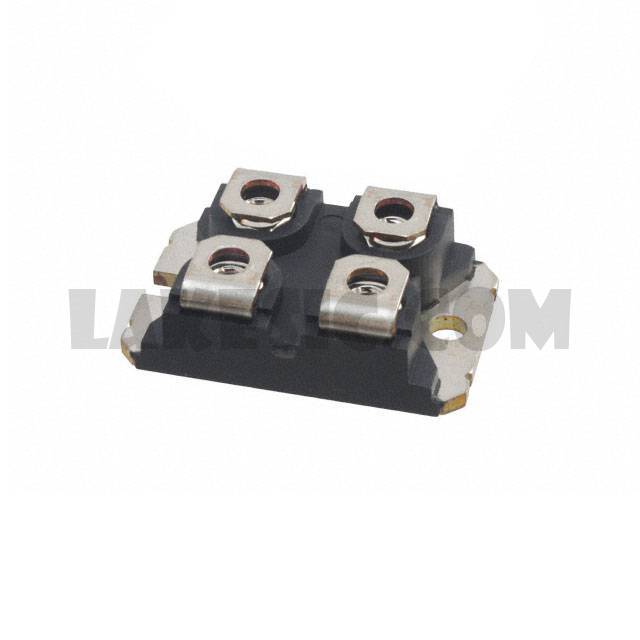

APT100GT120JU2

Part NumberAPT100GT120JU2

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 140A 480W SOT227

DatasheetAPT100GT120JU2

Package / CaseISOTOP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 140A 480W Chassis Mount SOT-227

To learn about the specification of APT100GT120JU2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT100GT120JU2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT100GT120JU2.
We are offering APT100GT120JU2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT100GT120JU2 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APT100GT120JU2

Standard Package

Manufacturer

Microsemi Corporation

Series

Part Status

Active

IGBT Type

Trench Field Stop

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

140A

Power - Max

480W

Vce(on) (Max) @ Vge, Ic

2.1V @ 15V, 100A

Current - Collector Cutoff (Max)

5mA

Input Capacitance (Cies) @ Vce

7.2nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

ISOTOP

Supplier Device Package

SOT-227
