APT13F120B

APT13F120B

Part NumberAPT13F120B

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1200V 14A TO247

DatasheetAPT13F120B/S

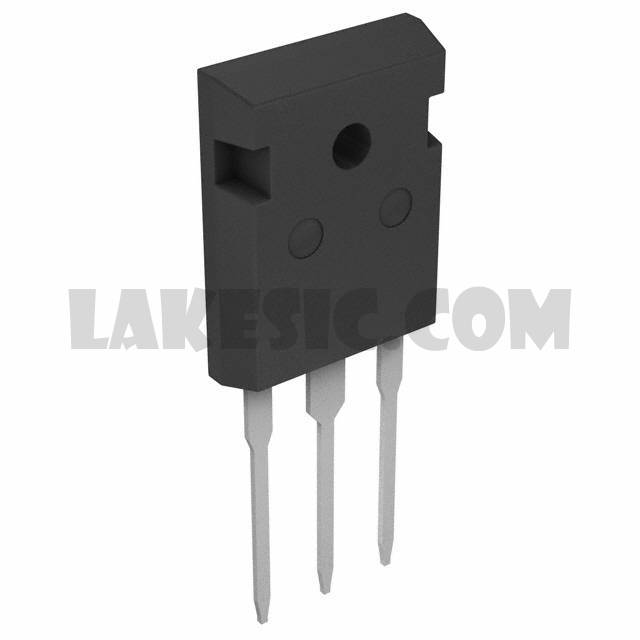

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1200V 14A (Tc) 625W (Tc) Through Hole TO-247 [B]

To learn about the specification of APT13F120B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT13F120B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT13F120B.
We are offering APT13F120B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT13F120B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APT13F120B/S
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 7A, 10V
Vgs(th) (Max) @ Id	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	145nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	4765pF @ 25V
FET Feature	-
Power Dissipation (Max)	625W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247 [B]
Package / Case	TO-247-3
