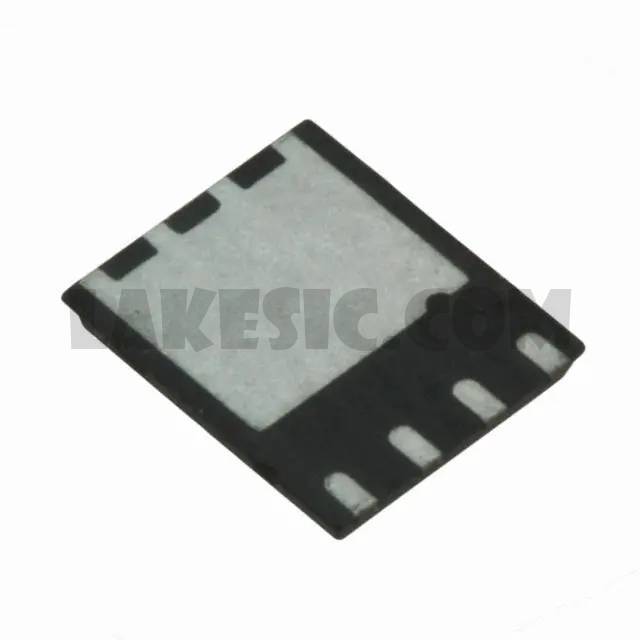

IRLH5030TRPBF

IRLH5030TRPBF

Part NumberIRLH5030TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 100V 13A 8PQFN

DatasheetIRLH5030PBF

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 13A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount 8-PQFN (5x6)

To learn about the specification of IRLH5030TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRLH5030TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRLH5030TRPBF.
We are offering IRLH5030TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRLH5030TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRLH5030PBF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	94nC @ 10V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	5185pF @ 50V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerVDFN
