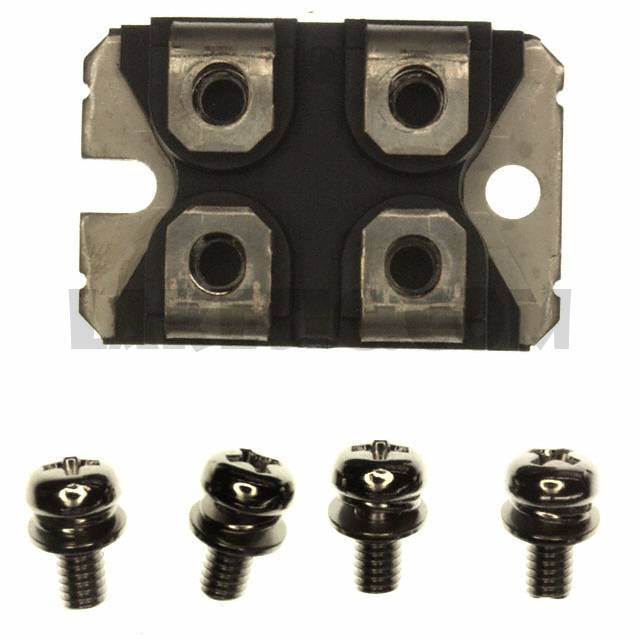

APT75GP120J

Part NumberAPT75GP120J

ManufacturerMicrosemi Corporation

DescriptionIGBT 1200V 128A 543W SOT227

DatasheetAPT75GP120J

Package / CaseISOTOP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module PT Single 1200V 128A 543W Chassis Mount ISOTOP®

To learn about the specification of APT75GP120J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT75GP120J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT75GP120J.
We are offering APT75GP120J for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT75GP120J - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

APT75GP120J

Standard Package

Manufacturer

Microsemi Corporation

Series

POWER MOS 7®

Part Status

Active

IGBT Type

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

128A

Power - Max

543W

Vce(on) (Max) @ Vge, Ic

3.9V @ 15V, 75A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

7.04nF @ 25V

Input

Standard

NTC Thermistor

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

ISOTOP

Supplier Device Package

ISOTOP®

APT75GP120J - Related Products

More >>

APT75GP120J

Microsemi Corporation, IGBT Module PT Single 1200V 128A 543W Chassis Mount ISOTOP®, POWER MOS 7®
