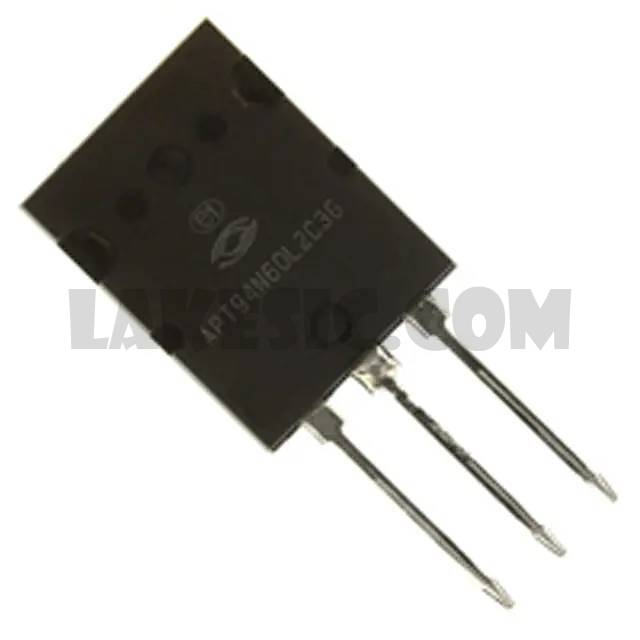

APT94N60L2C3G

APT94N60L2C3G

Part NumberAPT94N60L2C3G

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 600V 94A TO264

DatasheetAPT94N60L2C3

Package / CaseTO-264-3, TO-264AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 94A (Tc) 833W (Tc) Through Hole 264 MAX™ [L2]

To learn about the specification of APT94N60L2C3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT94N60L2C3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT94N60L2C3G.
We are offering APT94N60L2C3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APT94N60L2C3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APT94N60L2C3
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	94A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	35mOhm @ 60A, 10V
Vgs(th) (Max) @ Id	3.9V @ 5.4mA
Gate Charge (Qg) (Max) @ Vgs	640nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13600pF @ 25V
FET Feature	-
Power Dissipation (Max)	833W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	264 MAX™ [L2]
Package / Case	TO-264-3, TO-264AA
