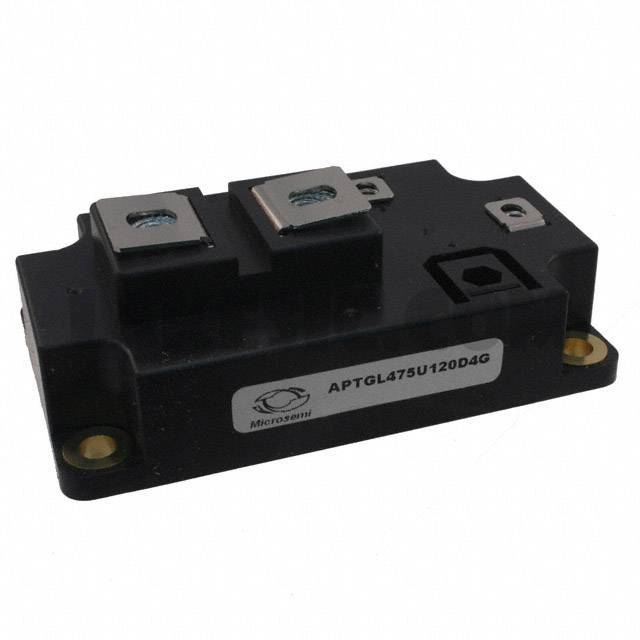

APTGL475U120D4G

APTGL475U120D4G

Part NumberAPTGL475U120D4G

ManufacturerMicrosemi Corporation

DescriptionIGBT4 SGL SWITCH 1200V 610A D4

DatasheetAPTGL475U120D4G

Package / CaseD4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Single 1200V 610A 2082W Chassis Mount D4

To learn about the specification of APTGL475U120D4G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGL475U120D4G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGL475U120D4G.
We are offering APTGL475U120D4G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGL475U120D4G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGL475U120D4G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	610A
Power - Max	2082W
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 400A
Current - Collector Cutoff (Max)	4mA
Input Capacitance (Cies) @ Vce	24.6nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D4
Supplier Device Package	D4
