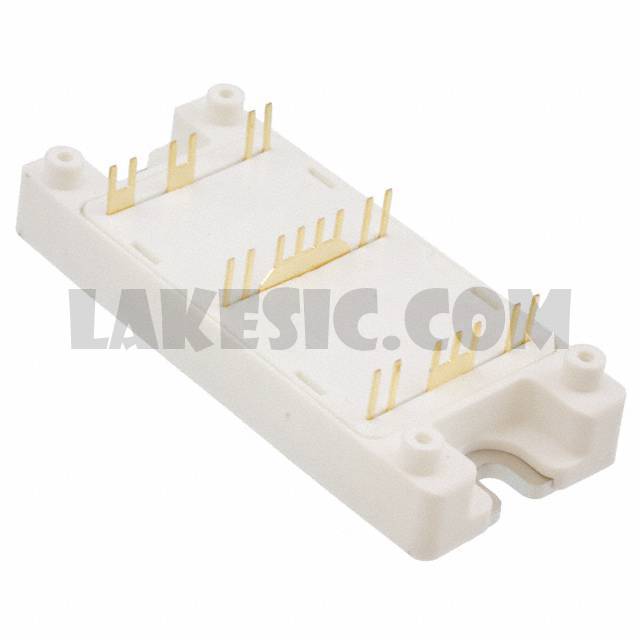

APTM100H45STG

Part NumberAPTM100H45STG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 1000V 18A SP4

DatasheetAPTM100H45STG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 1000V (1kV) 18A 357W Chassis Mount SP4

To learn about the specification of APTM100H45STG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100H45STG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100H45STG.
We are offering APTM100H45STG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100H45STG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM100H45STG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	4 N-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C	18A
Rds On (Max) @ Id, Vgs	540mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	154nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	4350pF @ 25V
Power - Max	357W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP4
Supplier Device Package	SP4
