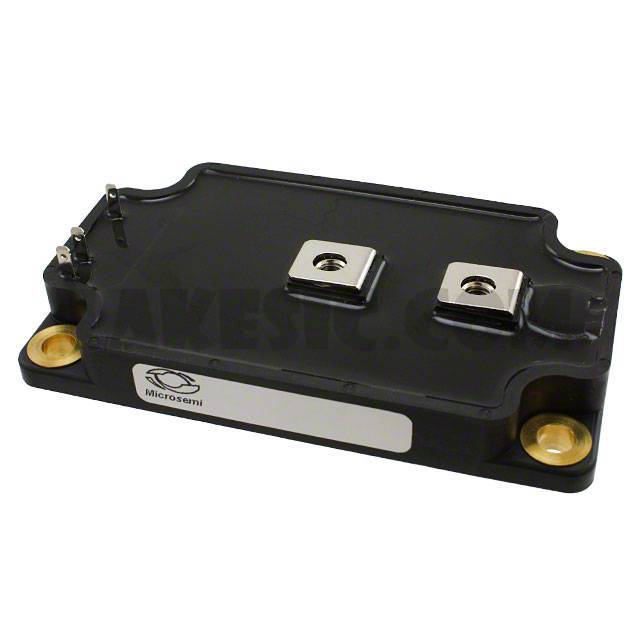

APTM100UM45DAG

APTM100UM45DAG

Part NumberAPTM100UM45DAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1000V 215A SP6

DatasheetAPTM100UM45DAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 215A (Tc) 5000W (Tc) Chassis Mount SP6

To learn about the specification of APTM100UM45DAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM100UM45DAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM100UM45DAG.
We are offering APTM100UM45DAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM100UM45DAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APTM100UM45DAG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	POWER MOS 7®
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	215A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	52mOhm @ 107.5A, 10V
Vgs(th) (Max) @ Id	5V @ 30mA
Gate Charge (Qg) (Max) @ Vgs	1602nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	42700pF @ 25V
FET Feature	-
Power Dissipation (Max)	5000W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP6
Package / Case	SP6
