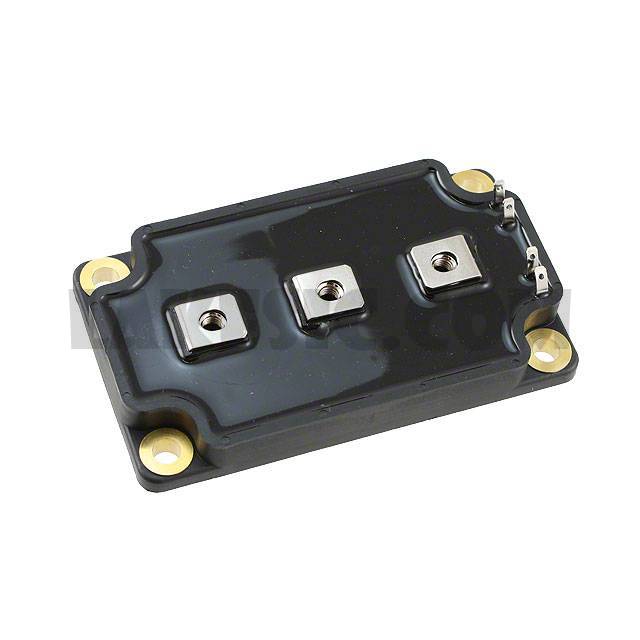

APTM10AM02FG

Part NumberAPTM10AM02FG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 100V 495A SP6

DatasheetAPTM10AM02FG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 100V 495A 1250W Chassis Mount SP6

To learn about the specification of APTM10AM02FG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM10AM02FG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM10AM02FG.
We are offering APTM10AM02FG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM10AM02FG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	APTM10AM02FG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	495A
Rds On (Max) @ Id, Vgs	2.5mOhm @ 200A, 10V
Vgs(th) (Max) @ Id	4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	1360nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	40000pF @ 25V
Power - Max	1250W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
