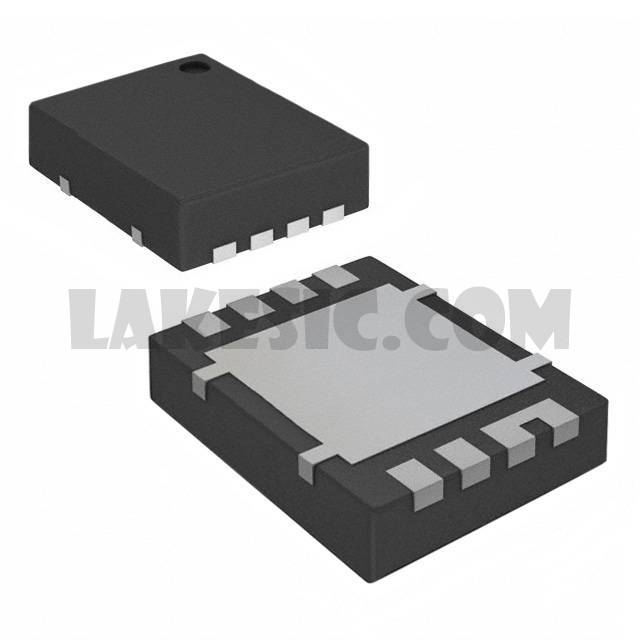

CSD87355Q5D


CSD87355Q5D

Part NumberCSD87355Q5D

Manufacturer

Description

Datasheet

Package / Case8-PowerLDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CSD87355Q5D - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerTexas Instruments
SeriesNexFET™
PackagingCut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1860pF @ 15V
Power - Max12W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (5x6)
