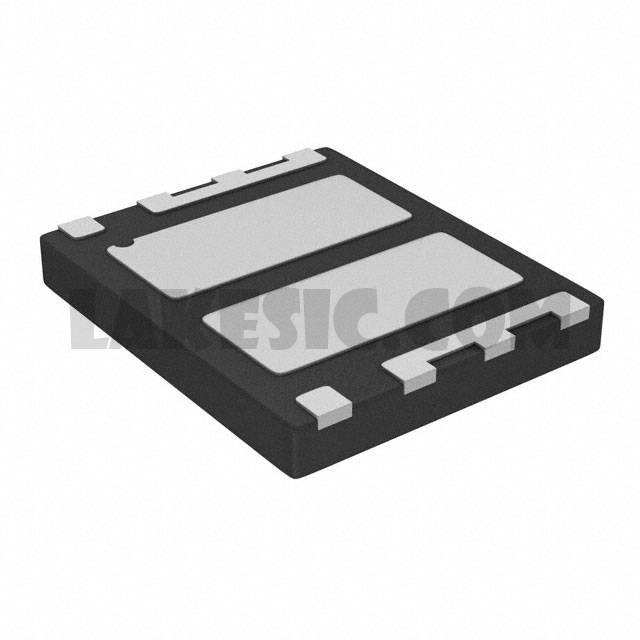

FDMC9430L-F085

Part NumberFDMC9430L-F085

ManufacturerON Semiconductor

DescriptionMOSFET 2 N-CHANNEL 40V 12A 8MLP

DatasheetFDMC9430L-F085

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 40V 12A 11.4W Surface Mount 8-MLP (3x3)

To learn about the specification of FDMC9430L-F085, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC9430L-F085 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC9430L-F085.
We are offering FDMC9430L-F085 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC9430L-F085 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMC9430L-F085
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	12A
Rds On (Max) @ Id, Vgs	8mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	984pF @ 20V
Power - Max	11.4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-MLP (3x3)
