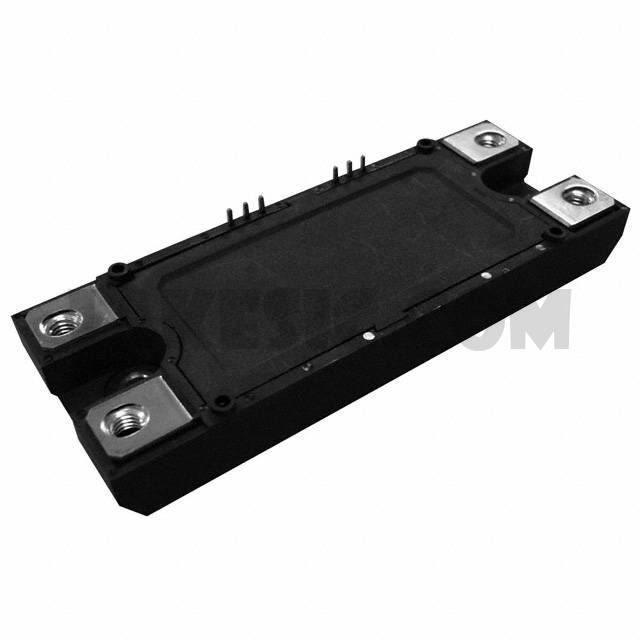

BSM120D12P2C005

Part NumberBSM120D12P2C005

ManufacturerRohm Semiconductor

DescriptionMOSFET 2N-CH 1200V 120A MODULE

DatasheetBSM120D12P2C005

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 120A (Tc) 780W Module

To learn about the specification of BSM120D12P2C005, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSM120D12P2C005 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSM120D12P2C005.
We are offering BSM120D12P2C005 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSM120D12P2C005 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BSM120D12P2C005
Standard Package	12
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	2.7V @ 22mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	14000pF @ 10V
Power - Max	780W
Operating Temperature	-40°C ~ 150°C (TJ)
Package / Case	Module
Supplier Device Package	Module
