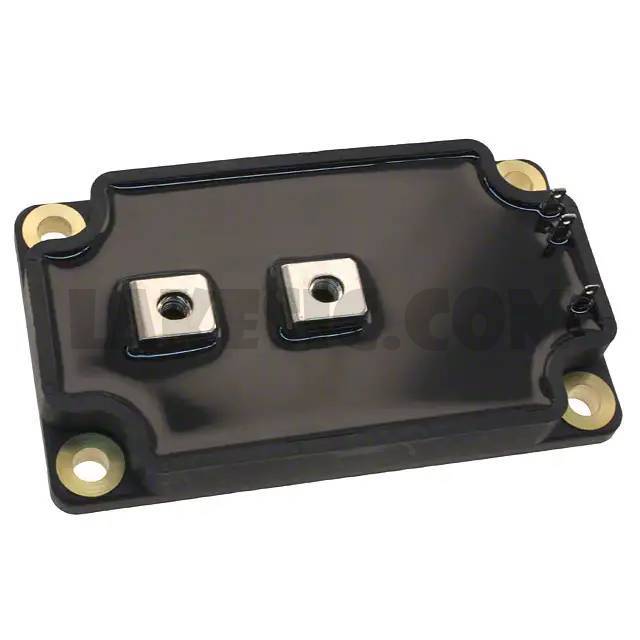

APTM10UM01FAG

APTM10UM01FAG

Part NumberAPTM10UM01FAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 100V 860A SP6

DatasheetAPTM10UM01FAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 860A (Tc) 2500W (Tc) Chassis Mount SP6

To learn about the specification of APTM10UM01FAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM10UM01FAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM10UM01FAG.
We are offering APTM10UM01FAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM10UM01FAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	APTM10UM01FAG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	860A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6mOhm @ 275A, 10V
Vgs(th) (Max) @ Id	4V @ 12mA
Gate Charge (Qg) (Max) @ Vgs	2100nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	60000pF @ 25V
FET Feature	-
Power Dissipation (Max)	2500W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP6
Package / Case	SP6
