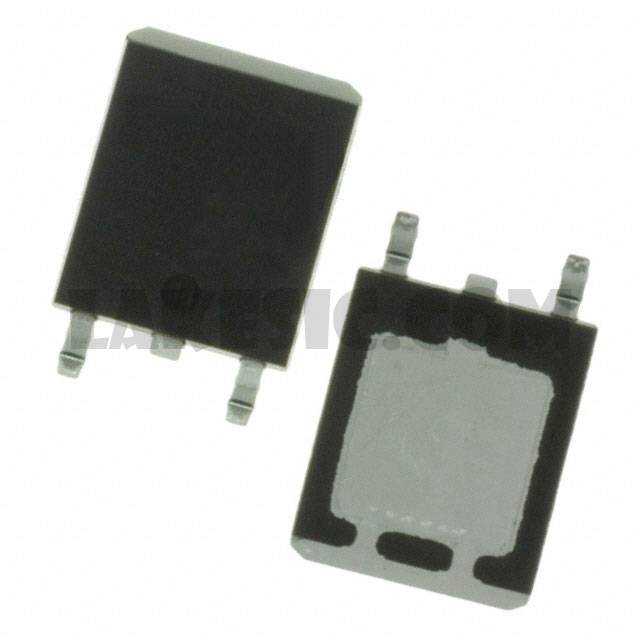

ATP106-TL-H

ATP106-TL-H

Part NumberATP106-TL-H

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 40V 30A ATPAK

DatasheetATP106

Package / CaseATPAK (2 leads+tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 40V 30A (Ta) 40W (Tc) Surface Mount ATPAK

To learn about the specification of ATP106-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ATP106-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ATP106-TL-H.
We are offering ATP106-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ATP106-TL-H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	ATP106
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	29nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1380pF @ 20V
FET Feature	-
Power Dissipation (Max)	40W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	ATPAK
Package / Case	ATPAK (2 leads+tab)
