AUIRGSL4062D1
AUIRGSL4062D1
Part Number AUIRGSL4062D1
Description IGBT 600V 59A 246W TO-262

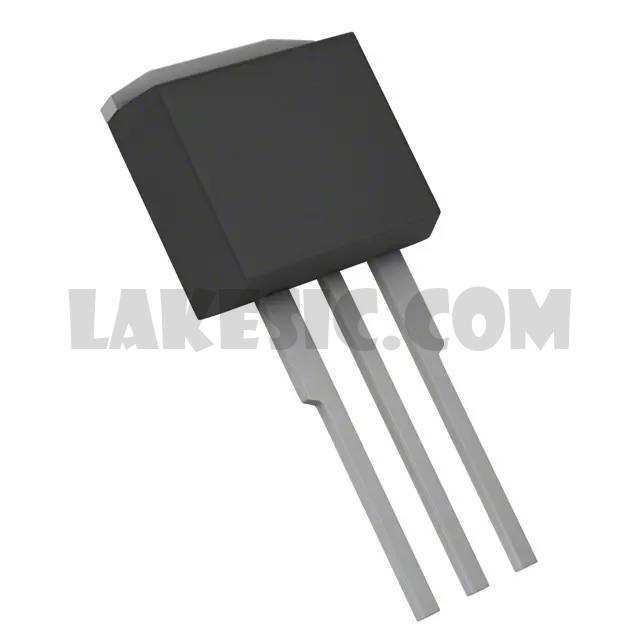

Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench 600V 59A 246W Through Hole TO-262
To learn about the specification of AUIRGSL4062D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AUIRGSL4062D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AUIRGSL4062D1.
We are offering AUIRGSL4062D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AUIRGSL4062D1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AUIRGB/S/SL4062D1
Standard Package 50
Manufacturer Infineon Technologies
Series -
Packaging Tube
Part Status Active
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 59A
Current - Collector Pulsed (Icm) 72A
Vce(on) (Max) @ Vge, Ic 1.77V @ 15V, 24A
Power - Max 246W
Switching Energy 532µJ (on), 311µJ (off)
Input Type Standard
Gate Charge 77nC
Td (on/off) @ 25°C 19ns/90ns
Test Condition 400V, 24A, 10Ohm, 15V
Reverse Recovery Time (trr) 102ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package TO-262
