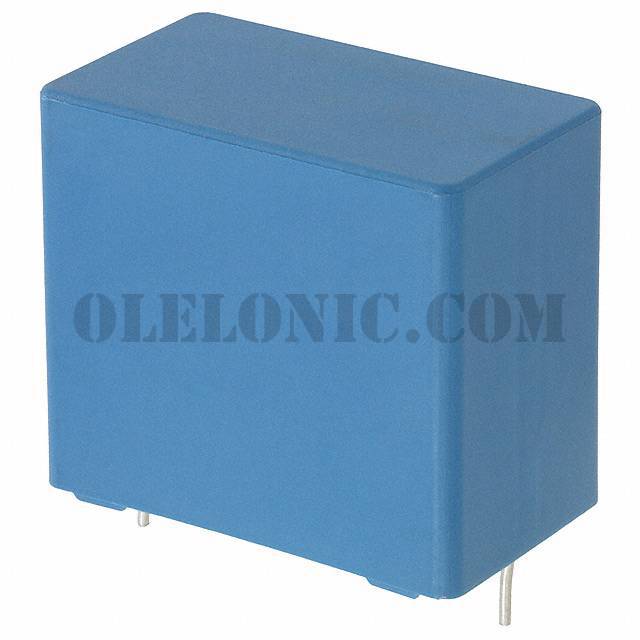

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	462
Manufacturer	EPCOS (TDK)
Series	B32774
Packaging	Bulk
Part Status	Active
Capacitance	5µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	15.3 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.551" W (31.50mm x 14.00mm)
Height - Seated (Max)	0.965" (24.50mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life

B32774D1155K000	EPCOS (TDK), 1.5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776E8206K000	EPCOS (TDK), 20µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32774D0705K000	EPCOS (TDK), 7µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776G8306J000	EPCOS (TDK), 30µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32776G4306K000	EPCOS (TDK), 30µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32774D8126K000	EPCOS (TDK), 12µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32774	View
B32776T1355K000	EPCOS (TDK), 3.5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32778G1276K000	EPCOS (TDK), 27µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32778	View
B32778G8506K000	EPCOS (TDK), 50µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32778	View
B32776G8206K000	EPCOS (TDK), 20µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32774D8505K000	EPCOS (TDK), 5µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32774	View
B32776T0395K000	EPCOS (TDK), 3.9µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View

B32774D8505K000

Part NumberB32774D8505K000
