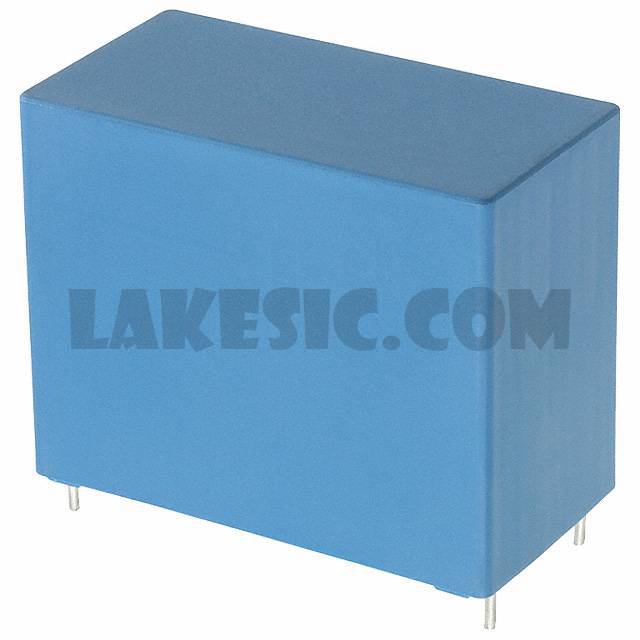

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	70
Manufacturer	EPCOS (TDK)
Series	B32778
Packaging	Bulk
Part Status	Active
Capacitance	45µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	6.6 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Height - Seated (Max)	-
Termination	PC Pins
Lead Spacing	2.067" (52.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life

B32774D0205K000	EPCOS (TDK), 2µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776T4166K000	EPCOS (TDK), 16µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32774D4106K000	EPCOS (TDK), 10µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32774	View
B32776G1805K000	EPCOS (TDK), 8µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32776T1355K000	EPCOS (TDK), 3.5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32774D0705K000	EPCOS (TDK), 7µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32774D1505K000	EPCOS (TDK), 5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32774	View
B32778G4756K000	EPCOS (TDK), 75µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32778	View
B32778G0306J000	EPCOS (TDK), 30µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View
B32776T8685K000	EPCOS (TDK), 6.8µF Film Capacitor 875V Polypropylene (PP), Metallized Radial, B32776	View
B32774D0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776T0395K000	EPCOS (TDK), 3.9µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View

B32778G8456K000

Part NumberB32778G8456K000
