B78108E1223K009
B78108E1223K009

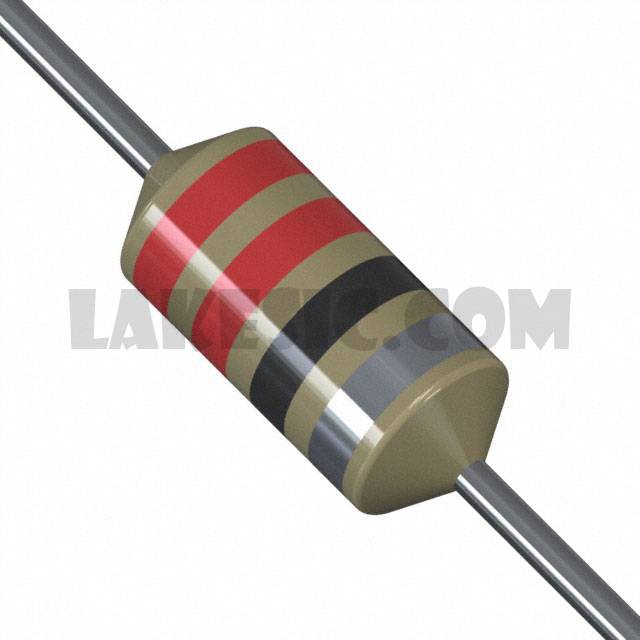

Part Number B78108E1223K009 Description FIXED IND 22UH 1.3A 350 MOHM TH Package / Case AxialUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Unshielded Wirewound Inductor 1.3A 350mOhm Max Axial
To learn about the specification of B78108E1223K009, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B78108E1223K009 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B78108E1223K009.
We are offering B78108E1223K009 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B78108E1223K009 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B78108E, B78148E Series Standard Package 1 Manufacturer EPCOS (TDK) Series B78108E Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 22µH Tolerance ±10% Current Rating (Amps) 1.3A Current - Saturation 1.25A Shielding Unshielded DC Resistance (DCR) 350mOhm Max Q @ Freq 40 @ 796kHz Frequency - Self Resonant 12MHz Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Features - Mounting Type Through Hole Package / Case Axial Supplier Device Package Axial Size / Dimension 0.157" Dia x 0.374" L (4.00mm x 9.50mm) Height - Seated (Max) -
