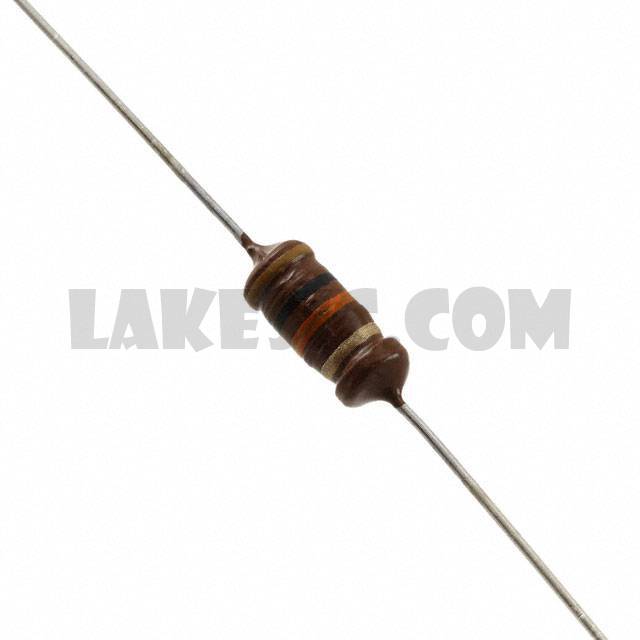

B82144A2106J000


B82144A2106J000

Part NumberB82144A2106J000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144A2106J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10mH
Tolerance±5%
Current Rating (Amps)60mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)42Ohm Max
Q @ Freq50 @ 79.6kHz
Frequency - Self Resonant350kHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device Package-
Size / Dimension0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)-
