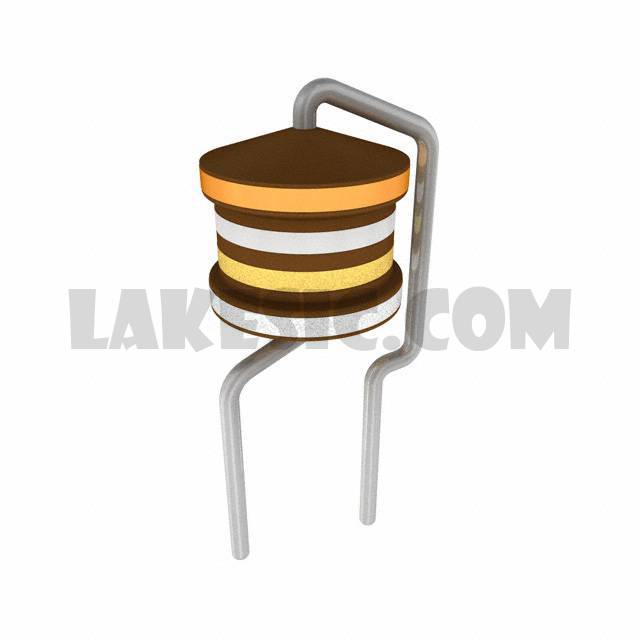

B82144B2392K000
B82144B2392K000
Part Number B82144B2392K000
Description FIXED IND 3.9UH 3.35A 75 MOHM TH
Package / Case Radial, Vertical Cylinder
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 3.9µH Unshielded Wirewound Inductor 3.35A 75mOhm Max Radial, Vertical Cylinder
To learn about the specification of B82144B2392K000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82144B2392K000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82144B2392K000.
We are offering B82144B2392K000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82144B2392K000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B82144B2 Series
Standard Package 1000
Manufacturer EPCOS (TDK)
Series LBC
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.9µH
Tolerance ±10%
Current Rating (Amps) 3.35A
Current - Saturation 4.4A
Shielding Unshielded
DC Resistance (DCR) 75mOhm Max
Q @ Freq 60 @ 2.52MHz
Frequency - Self Resonant 90MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Supplier Device Package -
Size / Dimension 0.256" Dia (6.50mm)
Height - Seated (Max) 0.551" (14.00mm)
