Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144F2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	2.1A
Current - Saturation	2A
Shielding	Unshielded
DC Resistance (DCR)	175mOhm Max
Q @ Freq	50 @ 252kHz
Frequency - Self Resonant	10MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz

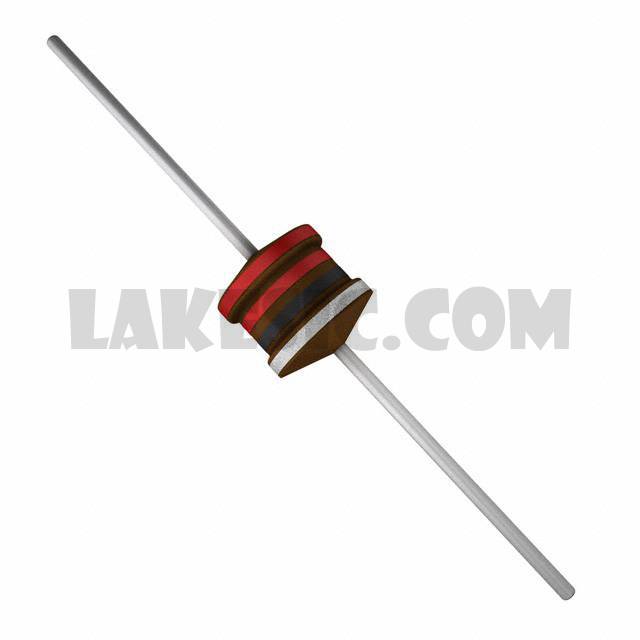

Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)	-

B82144F2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Axial, LBC	View
B82144B2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2272K000	EPCOS (TDK), 2.7µH Unshielded Wirewound Inductor 3.55A 60mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1155J000	EPCOS (TDK), 1.5mH Unshielded Wirewound Inductor 230mA 6.4Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 600mA 2.02Ohm Max Radial, Vertical Cylinder, LBC	View
B82144A2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 1.6A 160mOhm Max Axial, LBC	View
B82144F2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Axial, LBC	View
B82144F2122K000	EPCOS (TDK), 1.2µH Unshielded Wirewound Inductor 4.25A 44mOhm Max Axial, LBC	View
B82144B2154J000	EPCOS (TDK), 150µH Unshielded Wirewound Inductor 1.05A 700mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Axial, LBC	View
B82144B1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2122K000	EPCOS (TDK), 1.2µH Unshielded Wirewound Inductor 4.25A 44mOhm Max Axial, LBC	View

B82144F2223K000

Part NumberB82144F2223K000
