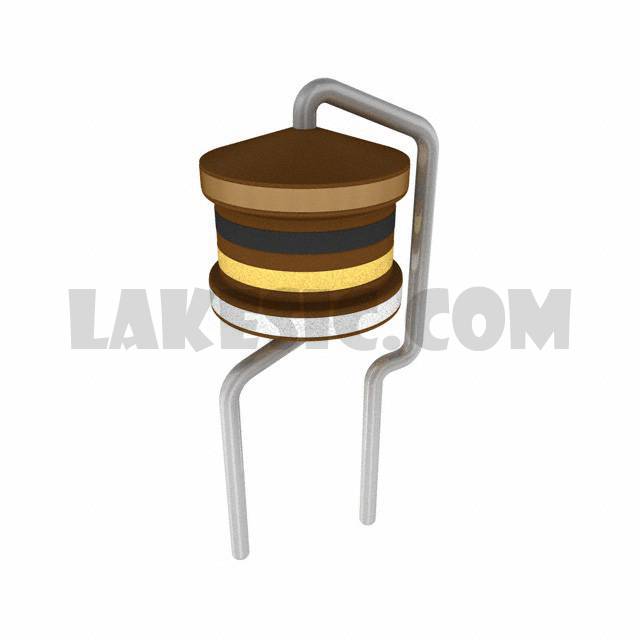

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±10%
Current Rating (Amps)	4.45A
Current - Saturation	7.7A
Shielding	Unshielded
DC Resistance (DCR)	43mOhm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	200MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2122K000	EPCOS (TDK), 1.2µH Unshielded Wirewound Inductor 4.25A 44mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Radial, Vertical Cylinder, LBC	View
B82144A2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 1.4A 220mOhm Max Axial, LBC	View
B82144A2475J000	EPCOS (TDK), 4.7mH Unshielded Wirewound Inductor 90mA 20Ohm Max Axial, LBC	View
B82144A2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 400mA 1.6Ohm Max Axial, LBC	View
B82144B2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.5A 65mOhm Max Axial, LBC	View
B82144F2182K000	EPCOS (TDK), 1.8µH Unshielded Wirewound Inductor 3.75A 50mOhm Max Axial, LBC	View
B82144B2274J000	EPCOS (TDK), 270µH Unshielded Wirewound Inductor 800mA 1.2Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Axial, LBC	View
B82144B2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 3.05A 80mOhm Max Radial, Vertical Cylinder, LBC	View

B82144B2102K000

Part NumberB82144B2102K000
