B82144A2224J000
B82144A2224J000

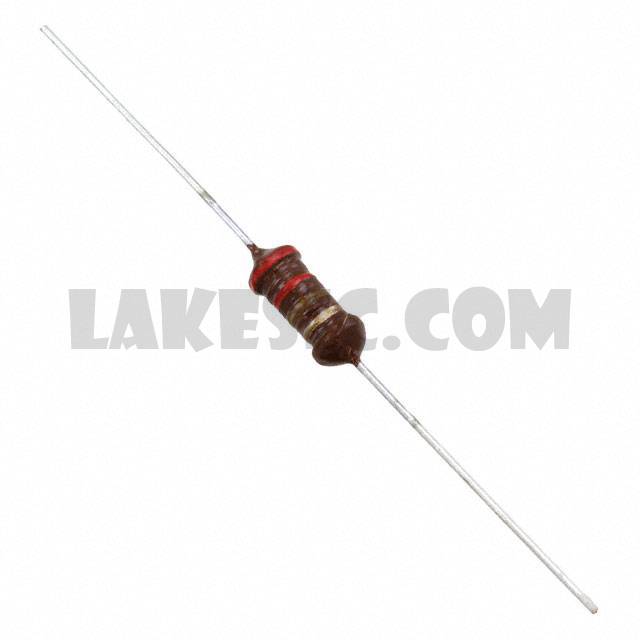

Part Number B82144A2224J000
Description FIXED IND 220UH 400MA 1.6 OHM TH
Package / Case Axial
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 220µH Unshielded Wirewound Inductor 400mA 1.6Ohm Max Axial
To learn about the specification of B82144A2224J000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82144A2224J000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82144A2224J000.
We are offering B82144A2224J000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82144A2224J000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B82144A Series
Standard Package 1500
Manufacturer EPCOS (TDK)
Series LBC
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 220µH
Tolerance ±5%
Current Rating (Amps) 400mA
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 1.6Ohm Max
Q @ Freq 50 @ 796kHz
Frequency - Self Resonant 2.4MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package -
Size / Dimension 0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max) -
