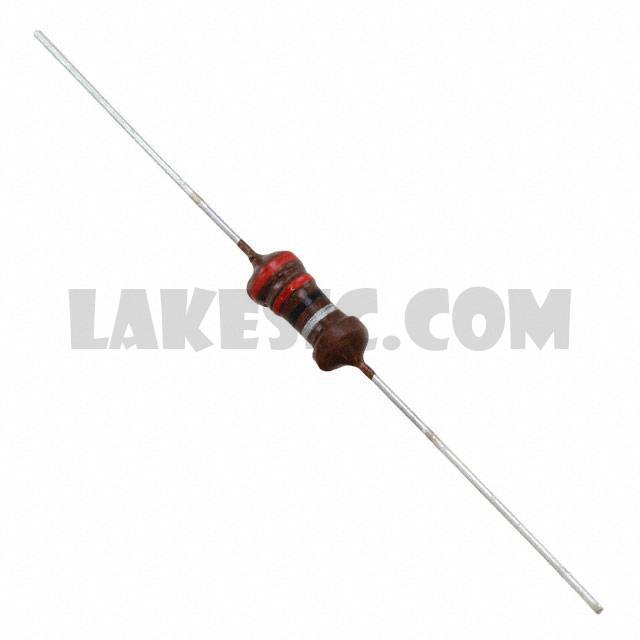

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144A Series
Standard Package	1500
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	1.1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	350mOhm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	12MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Size / Dimension	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)	-

B82144F2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Axial, LBC	View
B82144F2333J000	EPCOS (TDK), 33µH Unshielded Wirewound Inductor 1.9A 220mOhm Max Axial, LBC	View
B82144B2473J000	EPCOS (TDK), 47µH Unshielded Wirewound Inductor 1.7A 270mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.5A 65mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Axial, LBC	View
B82144B2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Radial, Vertical Cylinder, LBC	View
B82144A2684J000	EPCOS (TDK), 680µH Unshielded Wirewound Inductor 240mA 2.8Ohm Max Axial, LBC	View
B82144B1155J000	EPCOS (TDK), 1.5mH Unshielded Wirewound Inductor 230mA 6.4Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2183K000	EPCOS (TDK), 18µH Unshielded Wirewound Inductor 2.2A 155mOhm Max Axial, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 2.2A 80mOhm Max Axial, LBC	View

B82144A2223K000

Part NumberB82144A2223K000
