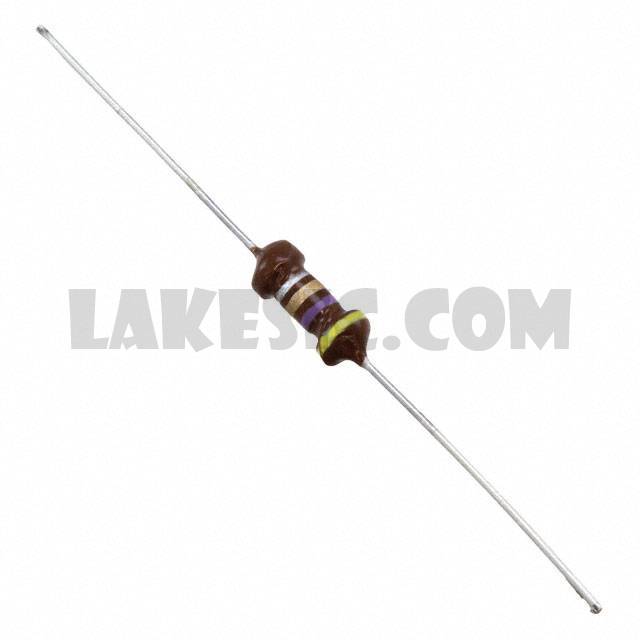

B82144A2472K000


B82144A2472K000

Part NumberB82144A2472K000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144A2472K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±10%
Current Rating (Amps)1.6A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)160mOhm Max
Q @ Freq40 @ 7.96MHz
Frequency - Self Resonant100MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device Package-
Size / Dimension0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)-
